EV Charging Infrastructure
The Electrical Infrastructure Behind EV Charging
Every charging site runs on the equipment upstream of the charger. NexVolt supplies that infrastructure — distribution transformers, RMUs, HT panels, LT panels, and ACDBs — coordinated as one project package.
Supply SideHT · MV · LT
Equipment CategoriesTransformer · RMU · ACDB
ScopeProject Package
[01 // CHARGING PROJECT TYPES]
Equipment Matched to the Charging Site

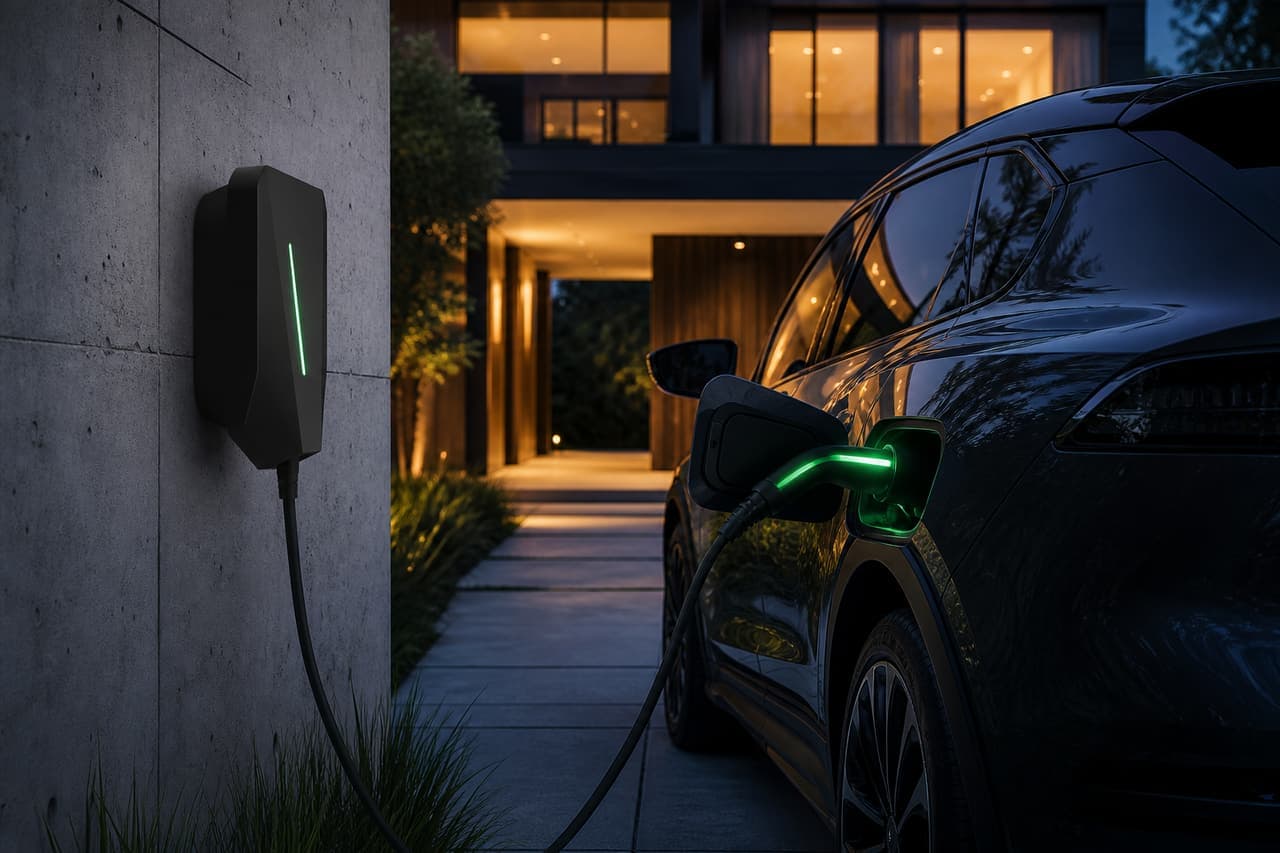

Commercial Charging Sites
TransformerLT Panel / ACDB
Electrical equipment for charging points at offices, retail complexes, and residential developments, sized to the site load and approved building drawings.

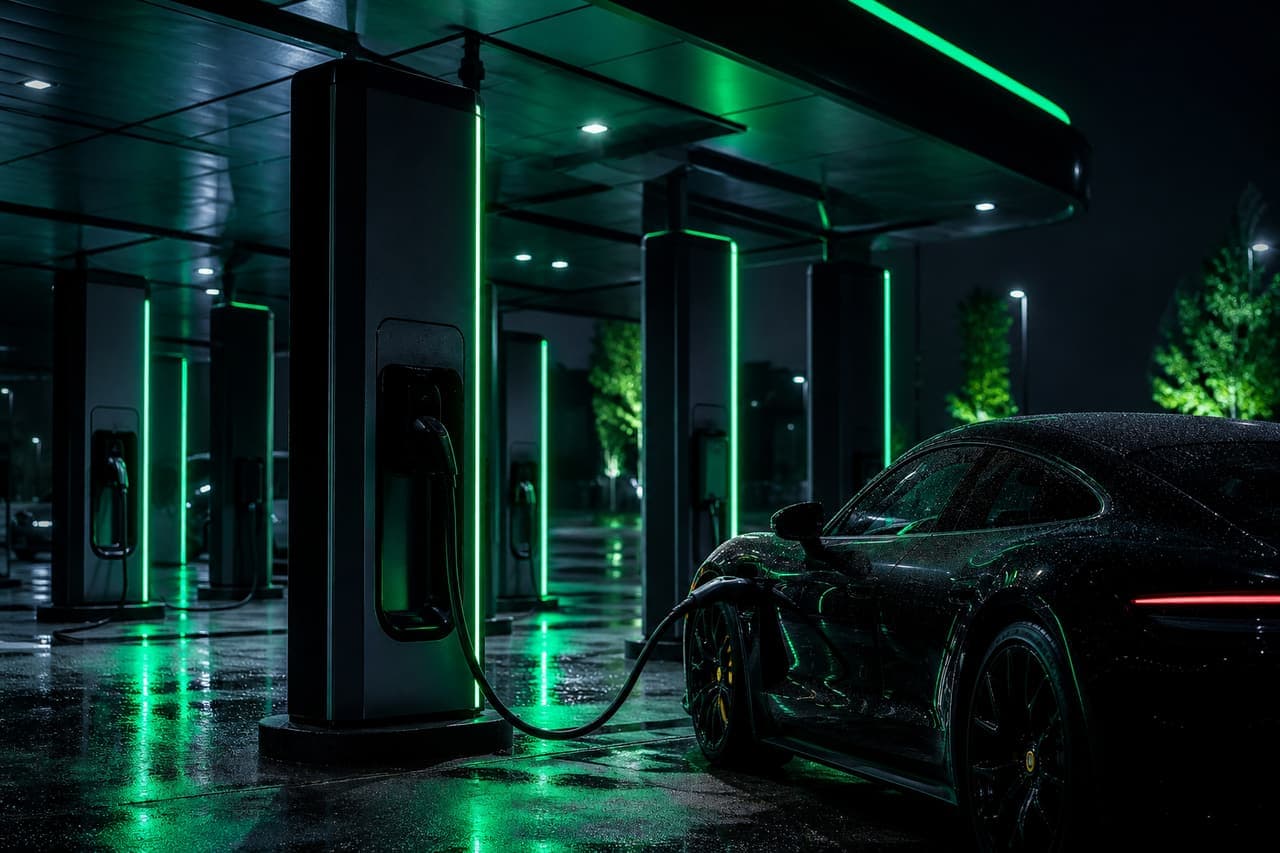

DC Fast Charging Sites
HT PanelRMU
Medium-voltage switchgear and distribution transformers for higher-load DC fast charging installations that draw well beyond standard building supply.

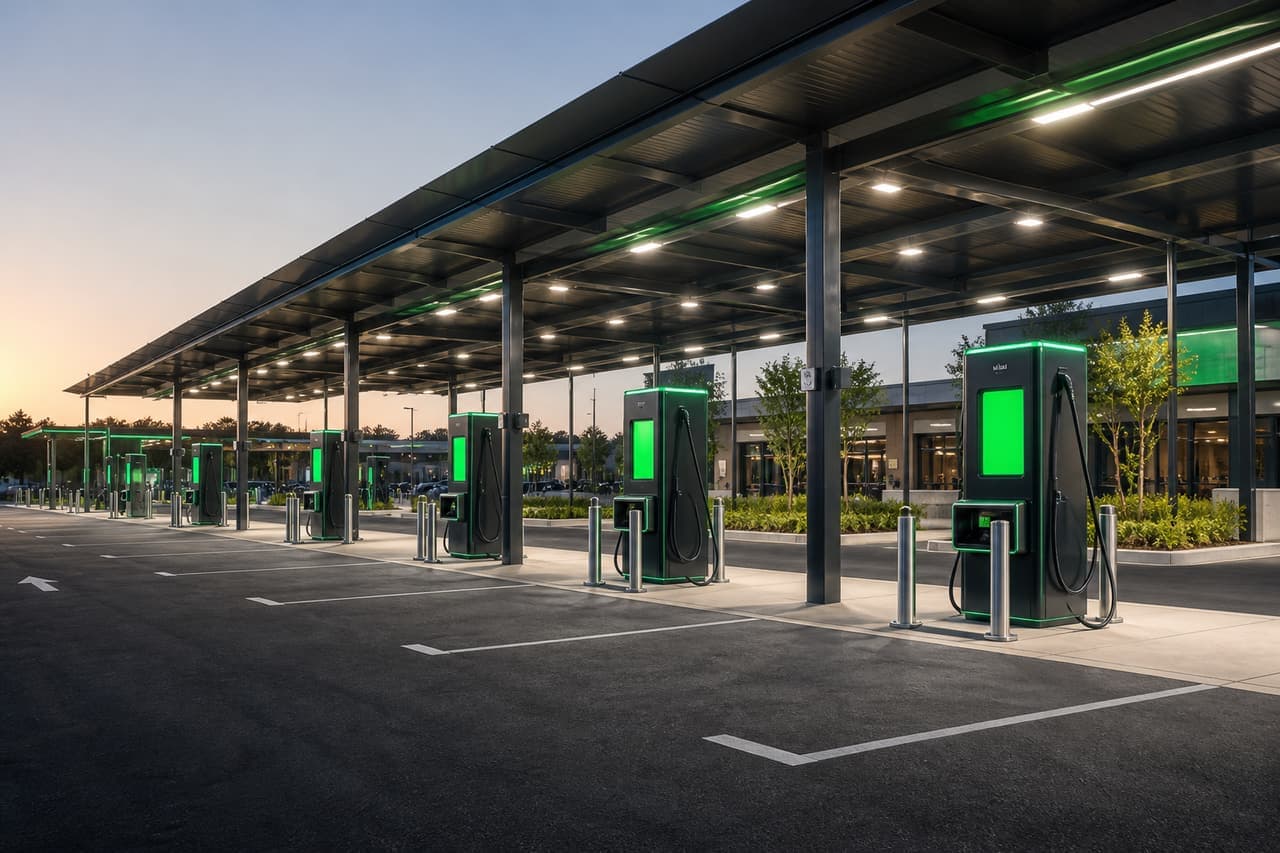

Public Charging Plazas
Substation packageMulti-feeder ACDB
Coordinated electrical infrastructure packages for highway plazas and public charging hubs, from the incoming supply through to the charger feeders.

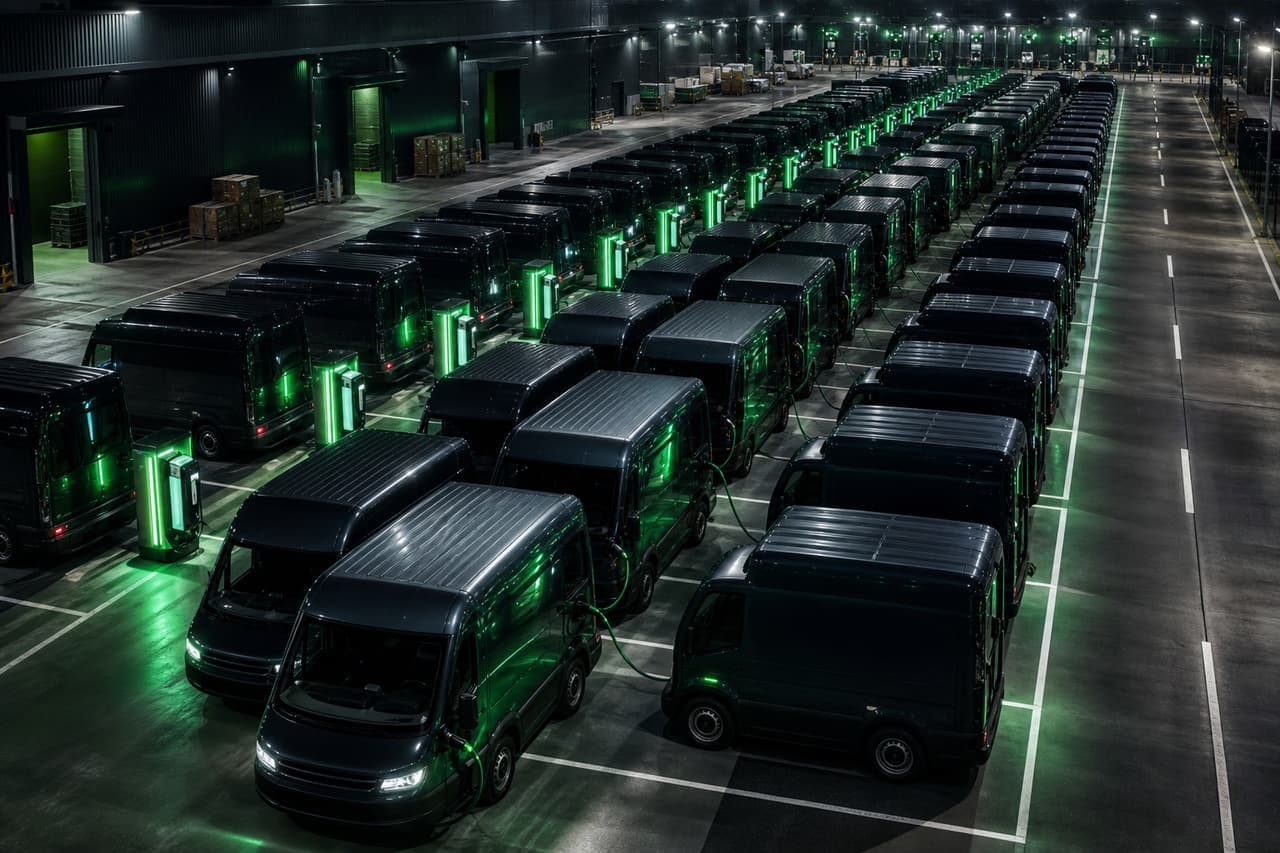

Fleet Depot Electrification
Distribution transformerMCC / PCC
Power distribution equipment for logistics depots and fleet facilities converting to electric, where many vehicles charge on a shared supply.
[02 // THE INFRASTRUCTURE CHAIN]
From Incoming Supply to the Charger
01
Distribution Transformer
Steps the incoming HT supply down to the working voltage the charging site requires.
02
RMU
Ring Main Unit for switching, isolation, and protection on the medium-voltage side.
03
HT Panel
Medium-voltage switchgear protecting the transformer and the incoming feeder.
04
LT Panel / ACDB
Low-voltage distribution board splitting the supply across the individual charger feeds.
05
EV Charger
The charging hardware itself, fed by the distribution equipment NexVolt supplies.
[03 // FREQUENTLY ASKED QUESTIONS]
EV Charging Infrastructure, Explained
A typical charging site runs from an incoming HT supply through a distribution transformer, an RMU or HT panel for switching and protection, and an LT panel or ACDB that splits the supply across individual charger feeds. NexVolt supplies this equipment as a coordinated package.
Our core business is the electrical infrastructure that sits behind the chargers — transformers, HT panels, RMUs, LT panels, and ACDBs. We coordinate this equipment so it matches the charging hardware specified for your site.
Sizing depends on the number and rating of chargers, the expected simultaneous load, and the incoming supply available at the site. Share your charging site load requirements and approved drawings, and our team will match equipment ratings to the specification.
Yes. Because we coordinate across transformers, HT and MV switchgear, and LT distribution, project teams running multiple charging sites can source a consistent equipment package from a single point of contact.
Planning a Charging Site? Let's Size the Equipment.
Share your charging site load requirements and approved drawings — our team will match equipment ratings to your specification and quote the package.
